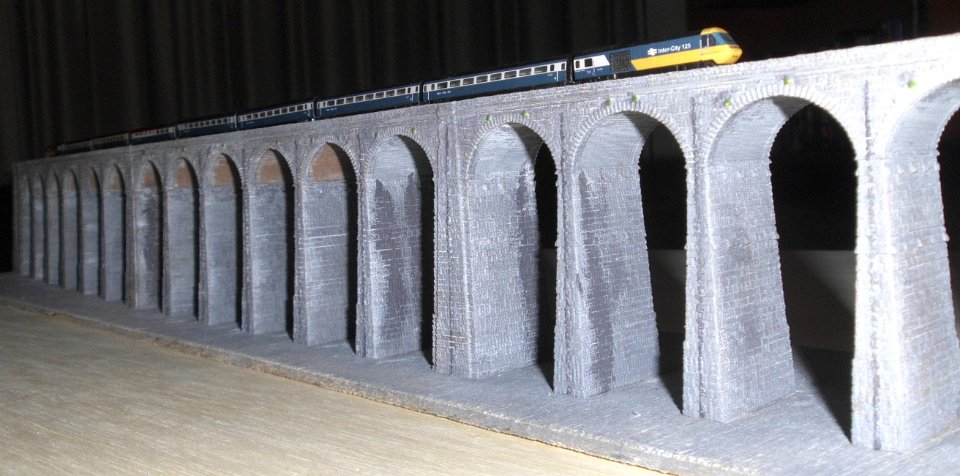

 1 A 3D printed T Scale model of Ribblehead Viaduct, ready for use on my next layout Blea Moor. |

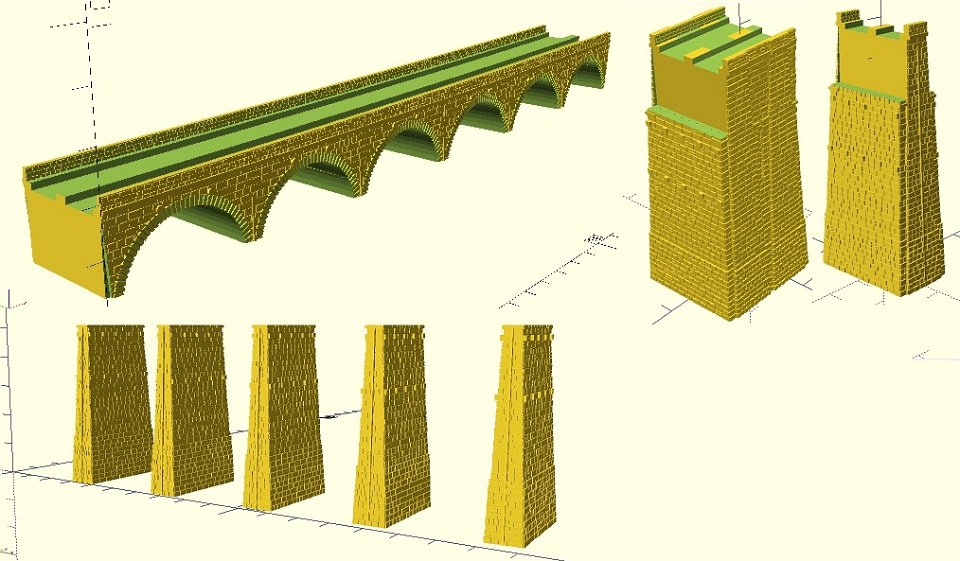

 2 ... and the OpenSCAD designs (with the normal piers attached to the arches before printing). |

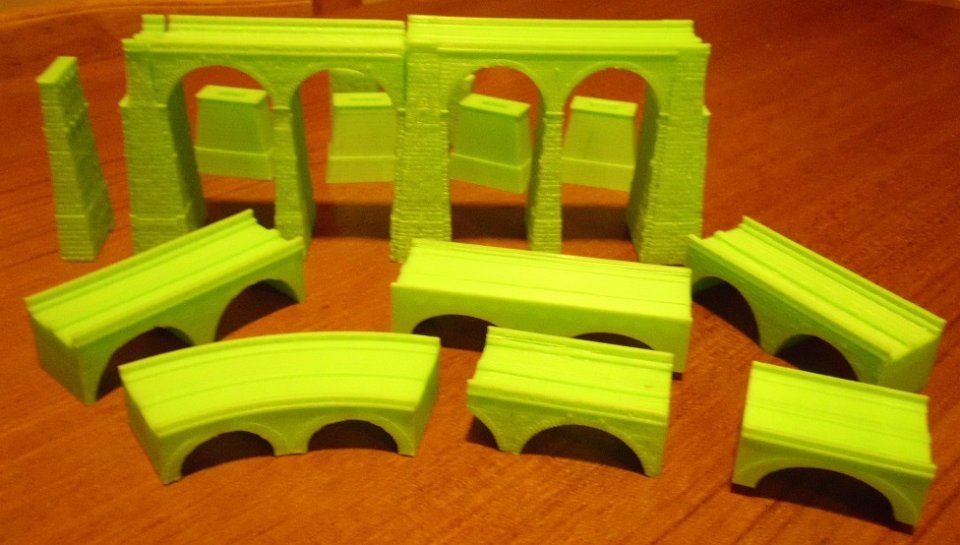

 3 Assorted test pieces, trying to figure out what would and would not work. |
 4 All the pieces prior to gluing and painting, ... |

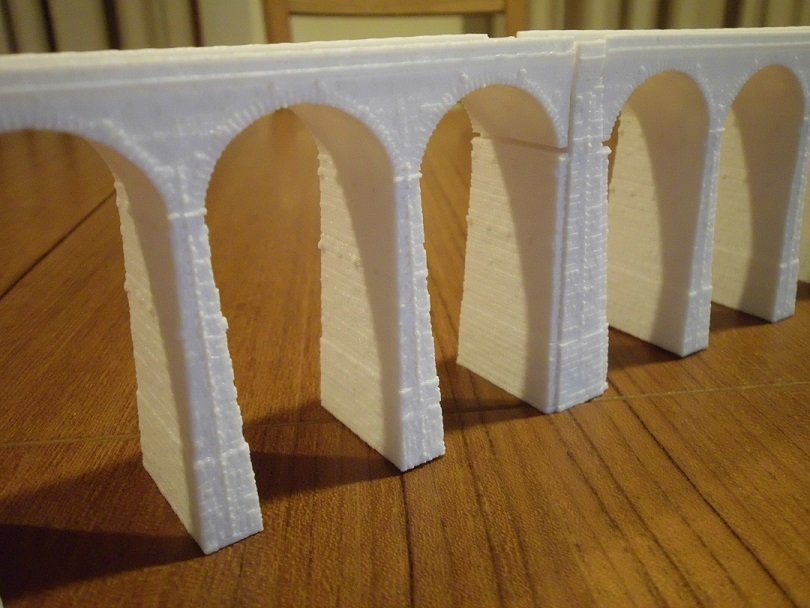

 5 ... and showing how they fit together to conceal the joins ... |

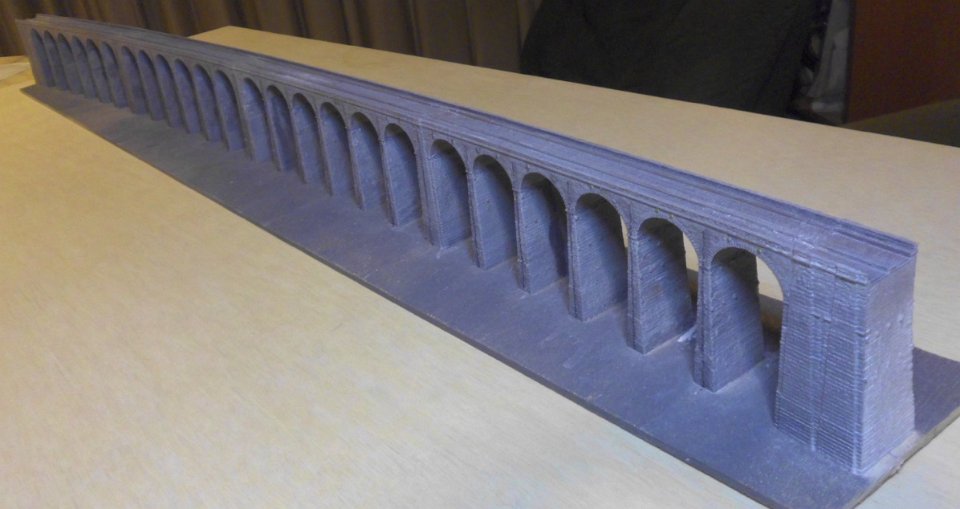

 6 0.9m in length, on a scale 1-mile radius curve, printed as four 6-arch sections, three king piers and two abutments, ... |

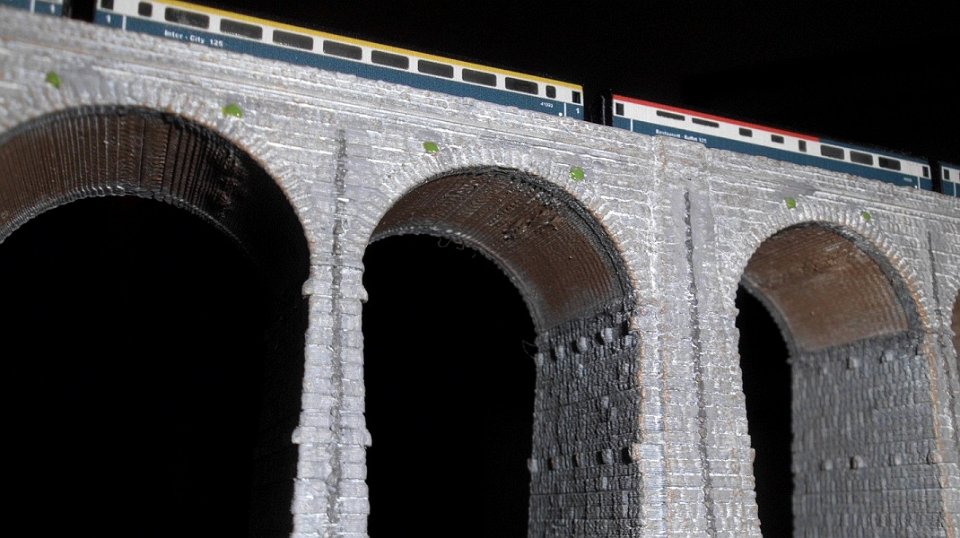

 7 ... hand painted in acrylics, just sample pots from the local Bunnings. |
